The Easy X-Trac® System helps you extract teeth with less trauma, and no twisting, rocking, or root fractures.
Click to see how it works!
What you get with traditional extractions
Root fracture / Bone loss
Increased tissue trauma
Extended healing times
What you get with the Easy X-Trac® System
More efficient process
More predictable outcomes
Better patient experience
What Makes Easy X-Trac® Different?
Ideal for immediate implant placement.
Works on single and multi-rooted teeth.
No rotating. No pulling. Just control.
Less post-op pain, and fewer complications.
Santa Barbara, CA
The Easy X-Trac® System was originally developed by Dr. Hans-Peter Hornig and Dr. Thomas Offerman.
To develop a new extraction technique for single and double-rooted teeth as a pre-implant procedure. In most cases, an immediate or even delayed implantation without bone restoration was not possible. To reduce the risk of damage to the surrounding tissue, an "atraumatic" tooth extraction technique would be required.
Paying particular attention to the protection of all adjacent hard and soft tissue (eg. the buccal lamella in the maxilla), the Easy X-TRAC® System became a PATENTED method for extracting single and double-rooted teeth. It consists of 3 different sized drills and 3 different sized sets of extraction screws, along with a specially-designed extractor and protection plates, to lift the tooth out of the socket without any rotary or tilting movement.
During their 3-year trial period, they were able to preserve the hard and soft tissue, leading to successful and immediate implant placement. This new extraction procedure only required a vertical motion to pull the tooth and safely dispersed the pressure of the extraction process on to adjacent teeth.
Avoiding the widening the alveolus and minimizing the risk of damage to adjacent bone structures.
Replace the use of root elevators, forceps and even periotomes.
Eliminate all rotary and tilting movements to pull the teeth.
Save 5-7 months by avoiding bone restoration.
Able to perform immediate implantation after extraction.
Molars without a prior section
Severely curved roots
Teeth with extensive ankylosis
The foundation of any successful extraction and immediate implant placement begins with a thorough assessment. Use digital imaging tools to evaluate the tooth’s root structure, bone density, and any potential complications. Proper planning is key to a smooth extraction and successful implant placement.
This patented system is designed to make extractions faster, less traumatic, and more predictable. Following our extensive guidelines ensures that the tooth is loosened in a controlled and measured manner. This reduces the risk of damage to surrounding bone and soft tissues, which is crucial for immediate implant success.
One of the major advantages of the Easy X-Trac® system is its ability to minimize trauma. By avoiding excessive force and using a more controlled extraction technique, you preserve the integrity of the bone and soft tissue, creating a more suitable environment for an implant.
Click to see how it works!
Restored Smiles, LLC
The set of 3 drills (1.1mm, 1.3 mm, 1.5mm) are used in succession from smallest (white) to largest (blue), to drill down into the root canal.
Choose the Screw
Measure the root depth, then choose the correct-sized, self-cutting Easy X-Trac® Screw.
Place the Screw
Ratchet the self-cutting Easy X-Trac® Screw into the root canal, with a clock-wise motion.
Place the Protector & the Easy X-Tractor®
Position the Protector Plate and turn the Easy X-Tractor® handle.
Remove the Easy X- Tractor®, Protector Plate, and the tooth.
The Result: No trauma or swelling, and no damage to the buccal plate.
(K8000) Includes:
XT100 Easy X-Tractor®
XT110 (set of 3 drills)
XT120 X-Trac® Ratchet
XT128 (3) 28mm screws @ 1.75mm diameter
XT130 (3) 30mm screws @ 1.75mm diameter
XT133 (3) 33mm screws @ 1.75mm diameter
XT135 (3) 33mm screws @2mm diameter
XT140L (left side Protector Plate)
XT140R (right side Protector Plate)
Sterilization Cassette
(K8100) Includes:
XT100 Easy X-Tractor®
XT110 (set of 3 drills)
XT120 X-Trac® Ratchet
XT128 (3) 28mm screws @ 1.75mm diameter
XT130 (3) 30mm screws @ 1.75mm diameter
XT133 (3) 33mm screws @ 1.75mm diameter
XT135 (3) 33mm screws @2mm diameter
XT140L (left side Protector Plate)
XT140R (right side Protector Plate)
Sterilization Cassette

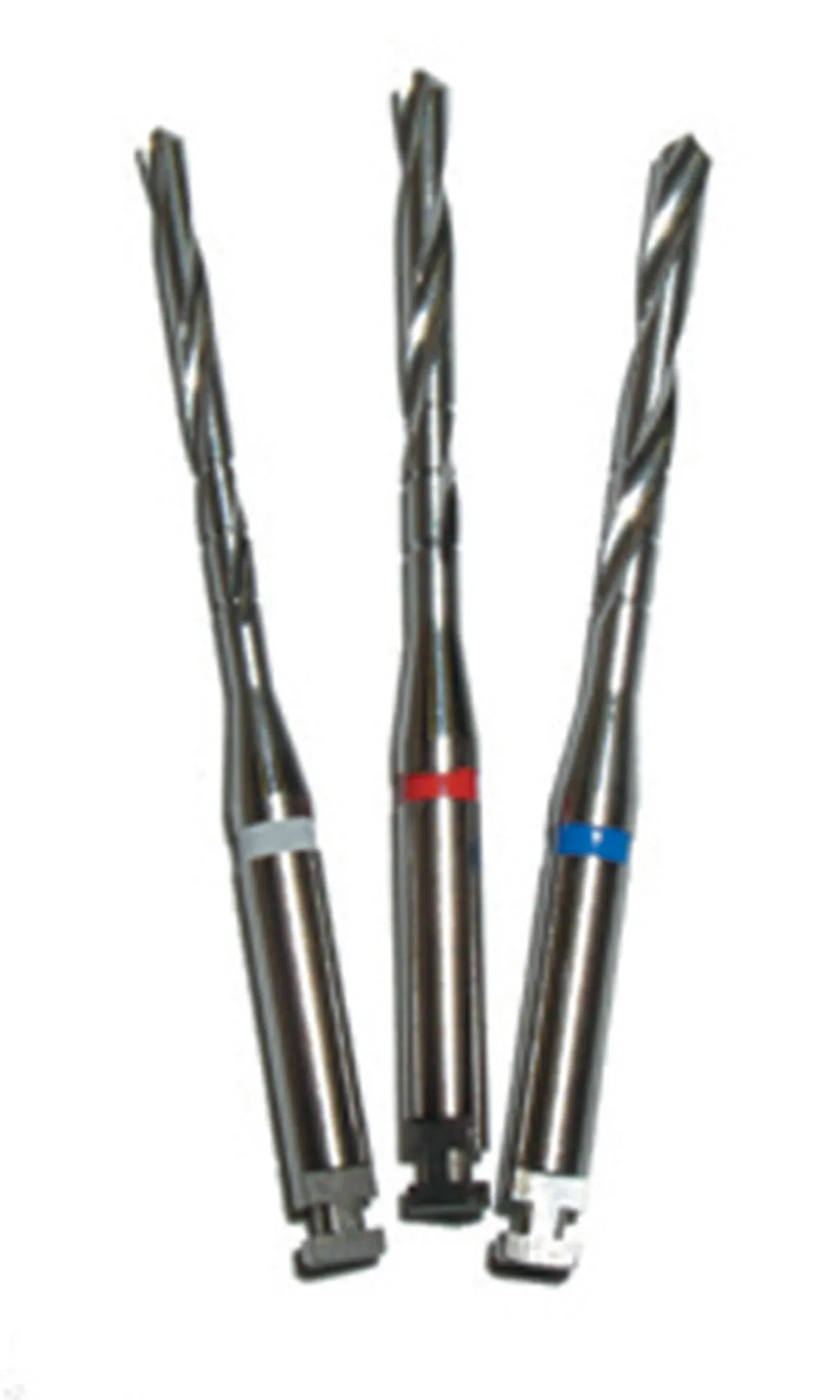

The set of 3 drills (1.1mm, 1.3 mm, 1.5mm) are used in succession from smallest (white) to largest (blue).

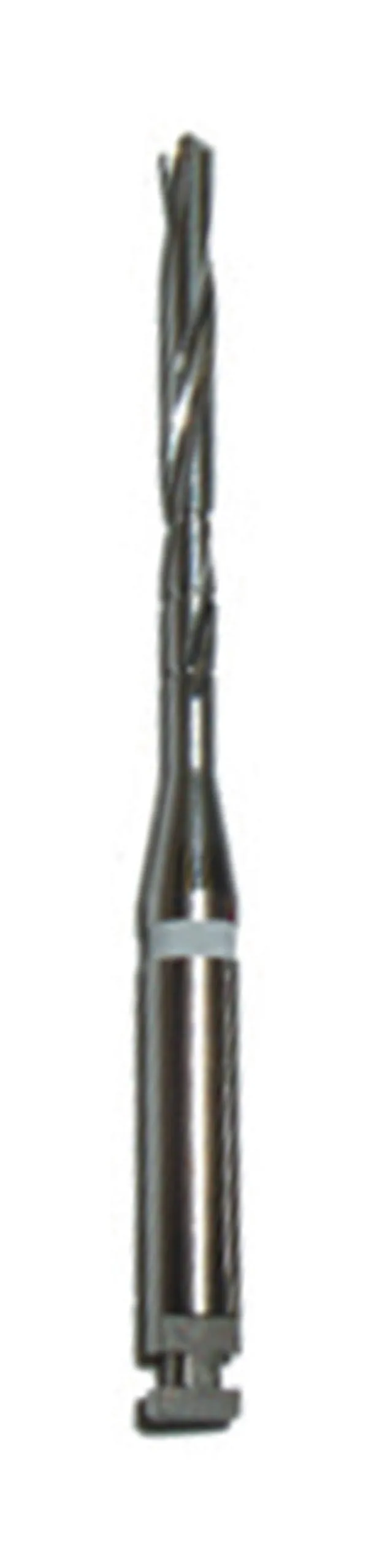

The 1.1mm Easy X-Trac® Drill is marked white and is used first to prepare the root canal.

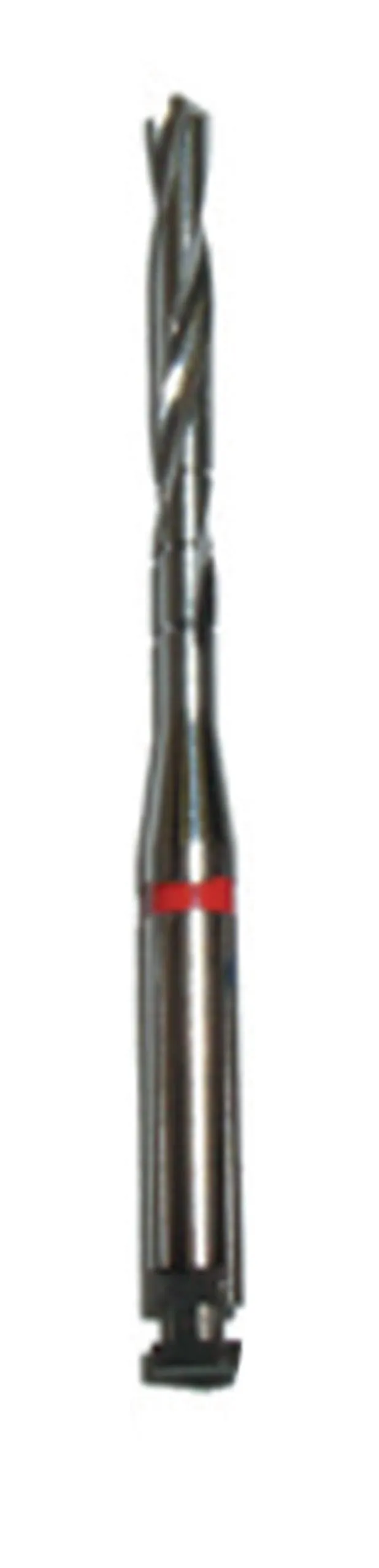

The 1.3mm Easy X-Trac® Drill is marked red and is used after the white 1.1mm Drill to prepare the root canal.

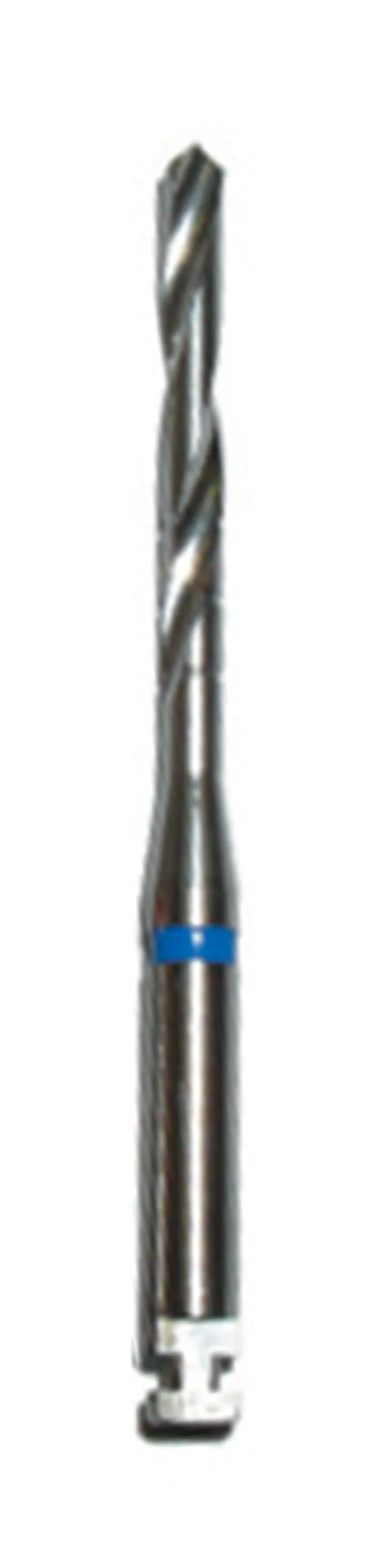

The 1.5mm Easy X-Trac® Drill is marked blue and is used after the red 1.3mm Drill to prepare the root canal.

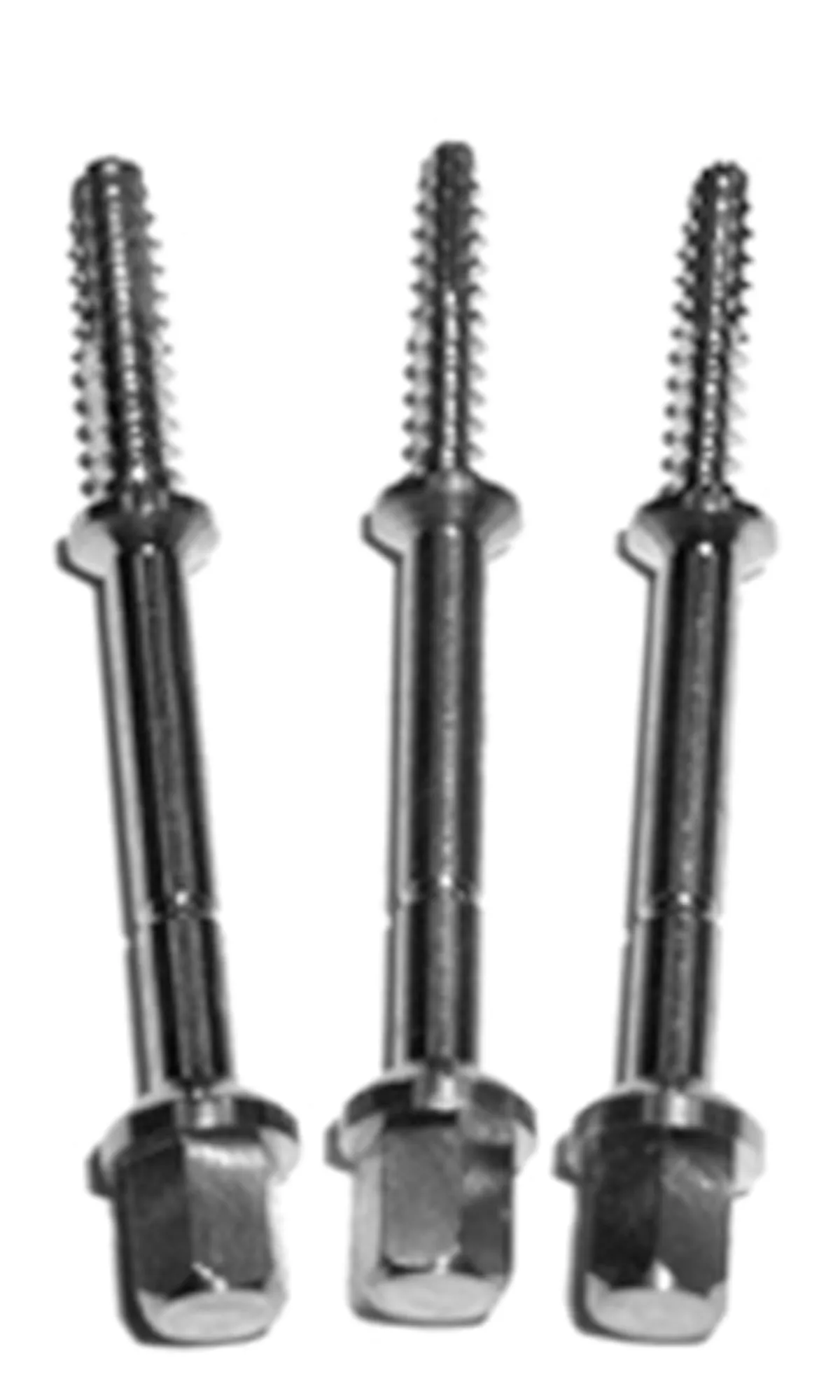

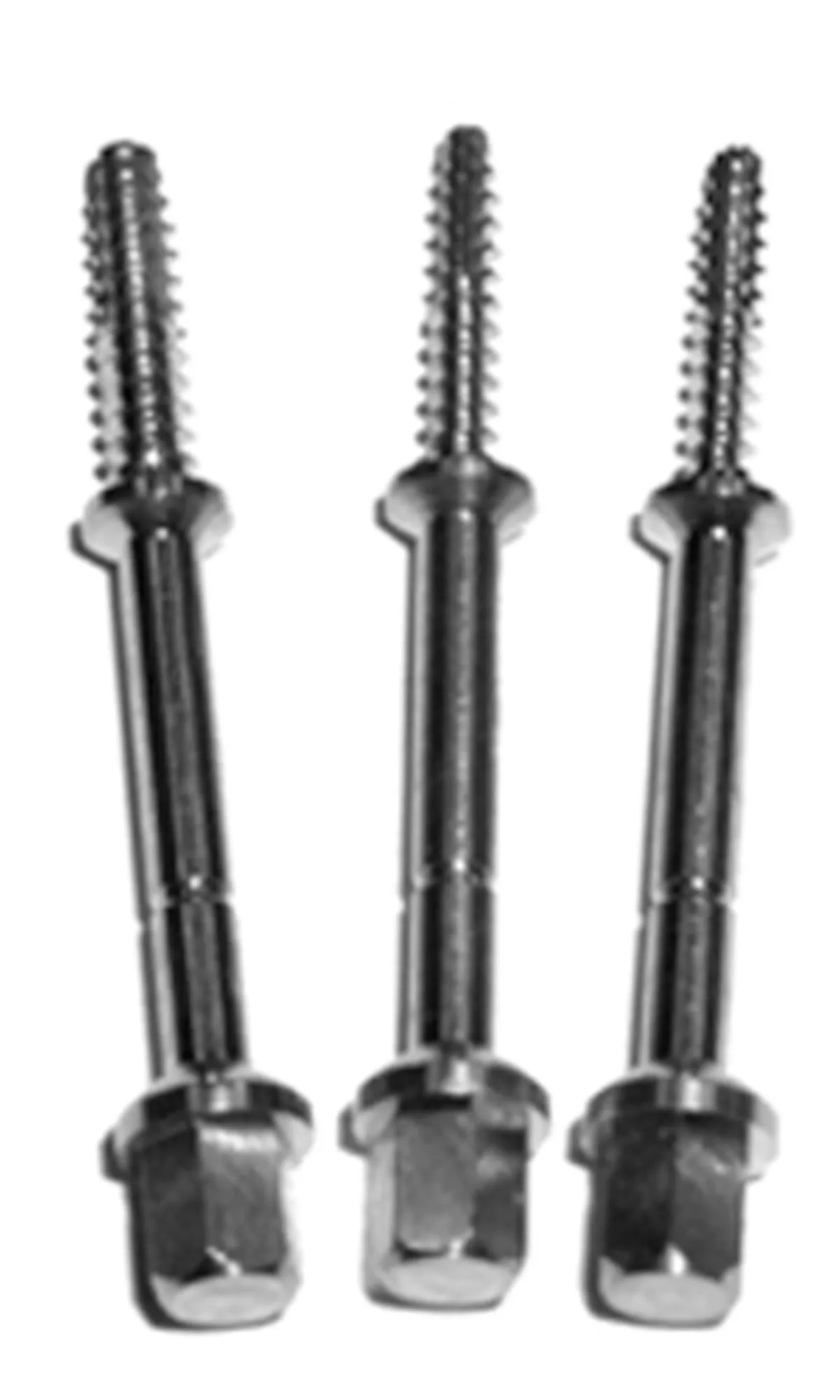

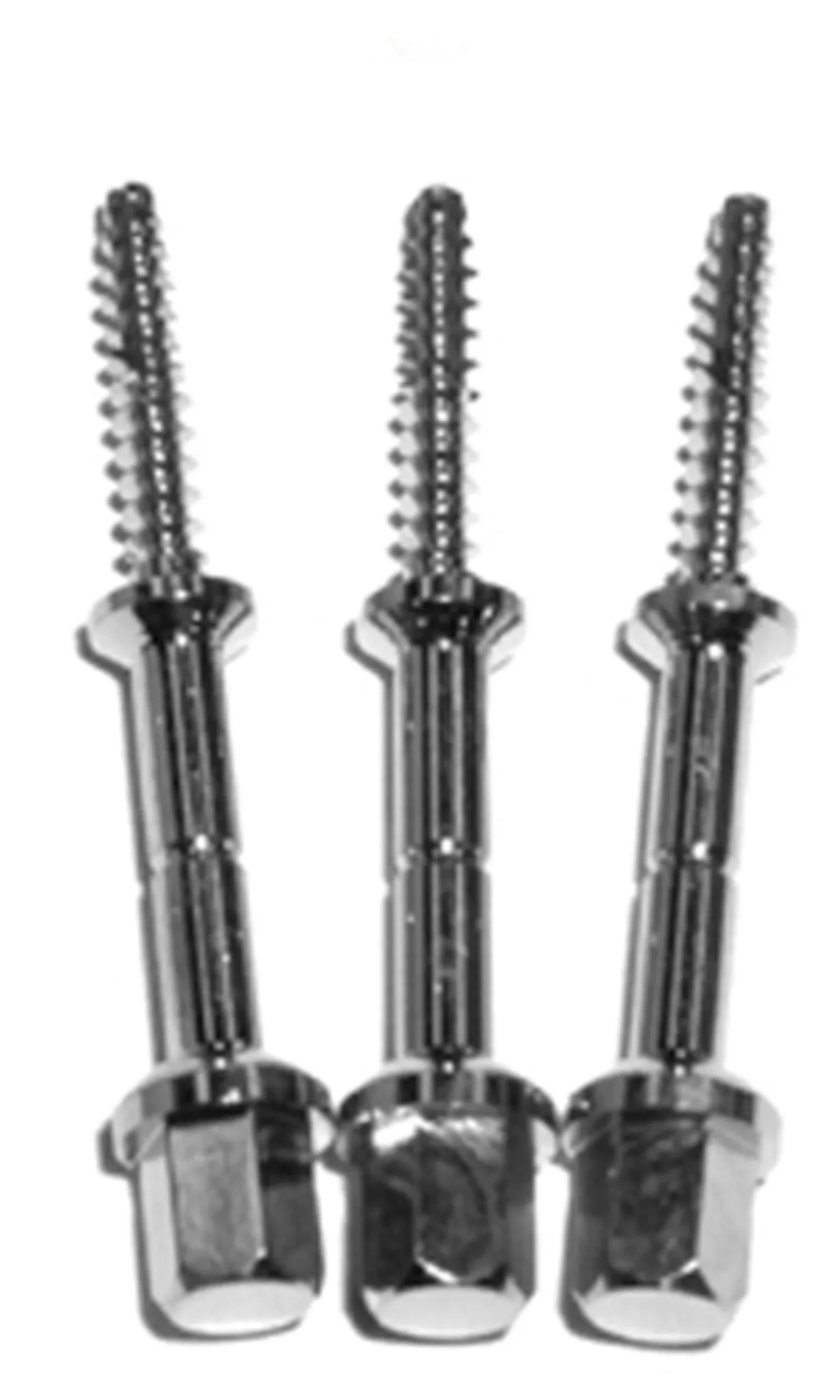

Set of 3 Screws, 28mm in length and 2.0mm in diameter, for the Easy X-Trac® System.

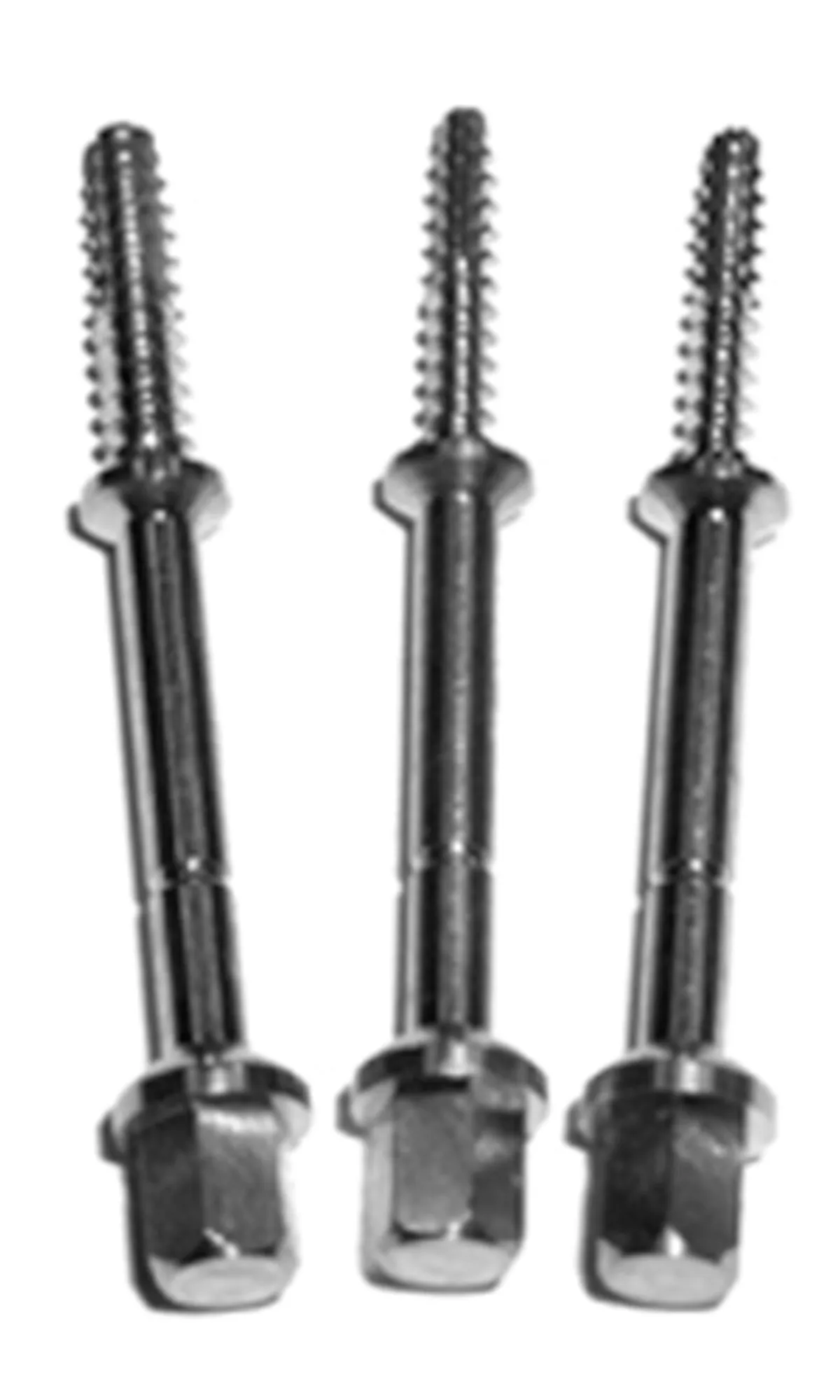

Set of 3 Screws, 30mm in length and 2.0mm in diameter, for the Easy X-Trac® System.
Set of 3 Screws, 33mm in length and 2.0mm in diameter, for the Easy X-Trac® System.
Set of 3 Screws (wider), 33mm x 2.5mm in diameter, perfect for dealing with endodontically treated roots.
Set of 3 Screws, 36mm in length and 2.0mm in diameter, for the Easy X-Trac® System.

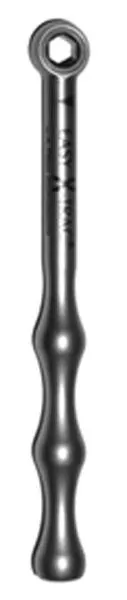

Easy X-Trac® Ratchet, used for placing the self-cutting Easy X-Trac® Screws

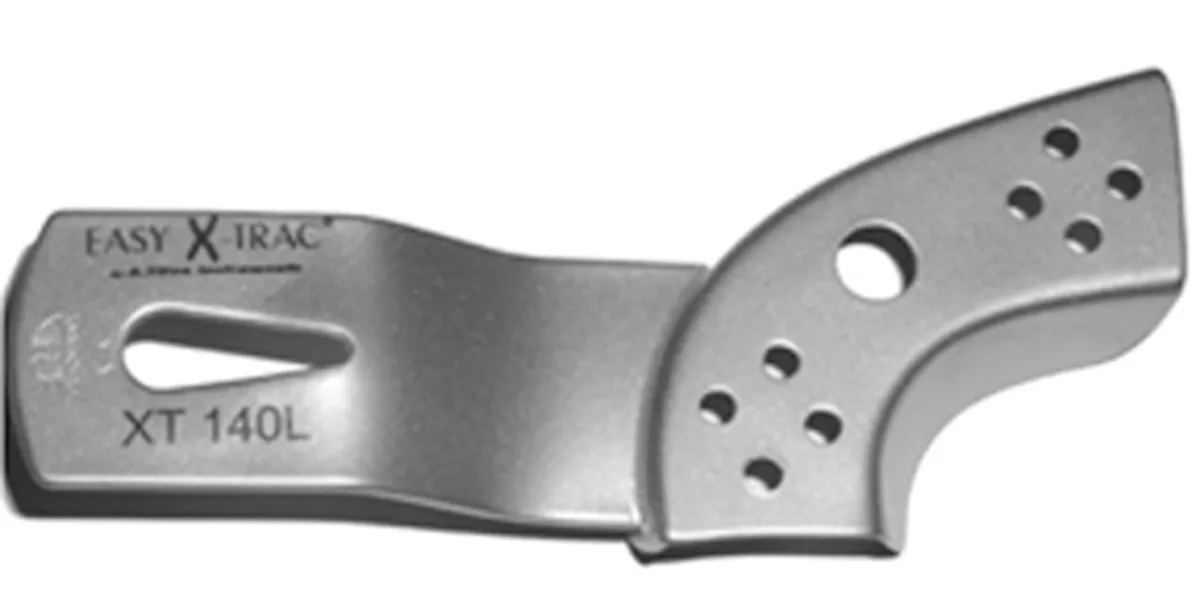

This Protector Plate is used on the left side with quick set impression material to protect the adjacent teeth from damage. When the impression material is loaded in the tray and the tray is placed back into the mouth over the screw, the tray should ideally create a 90 degree angle from the screw by lining up the tray with the line on the screw. This will help to create leverage needed for the extractor to pull the root our of the socket.

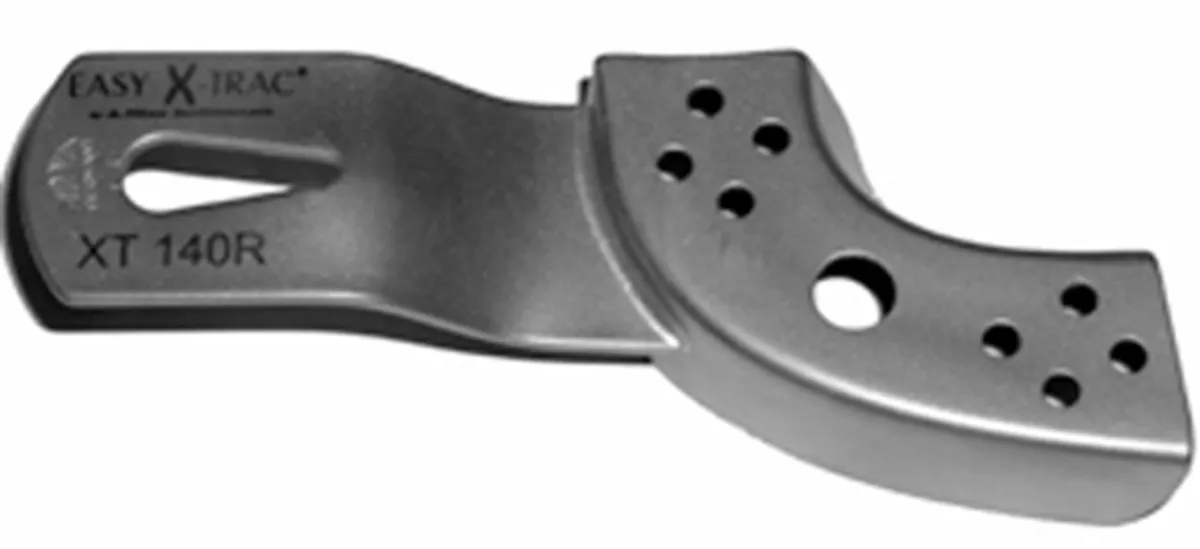

The right Protector Plate is used with quick set impression material to protect the adjacent teeth from damage during extraction with the Easy X-TRAC. When the impression material is loaded in the tray and the tray is placed back into the mouth over the screw, the tray should ideally create a 90 degree angle from the screw by lining up the tray with the line on the screw. This will help to create leverage needed for the extractor to pull the root our of the socket.

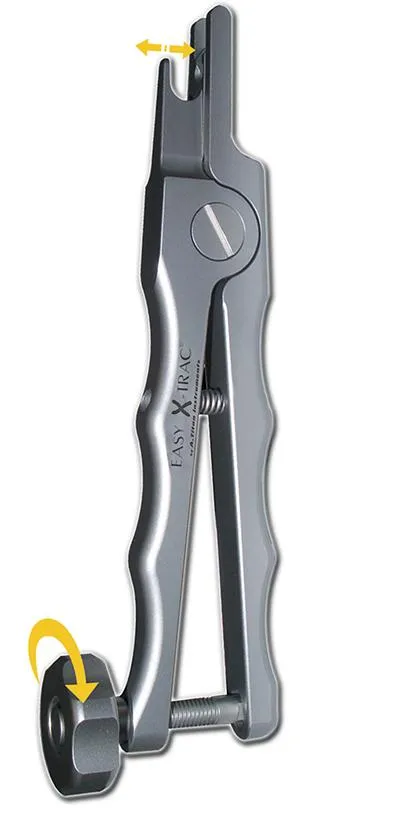

The Easy X-TRACTOR is a patented extraction device to be used in conjunction with the X-TRAC Screws and Protector Plates.

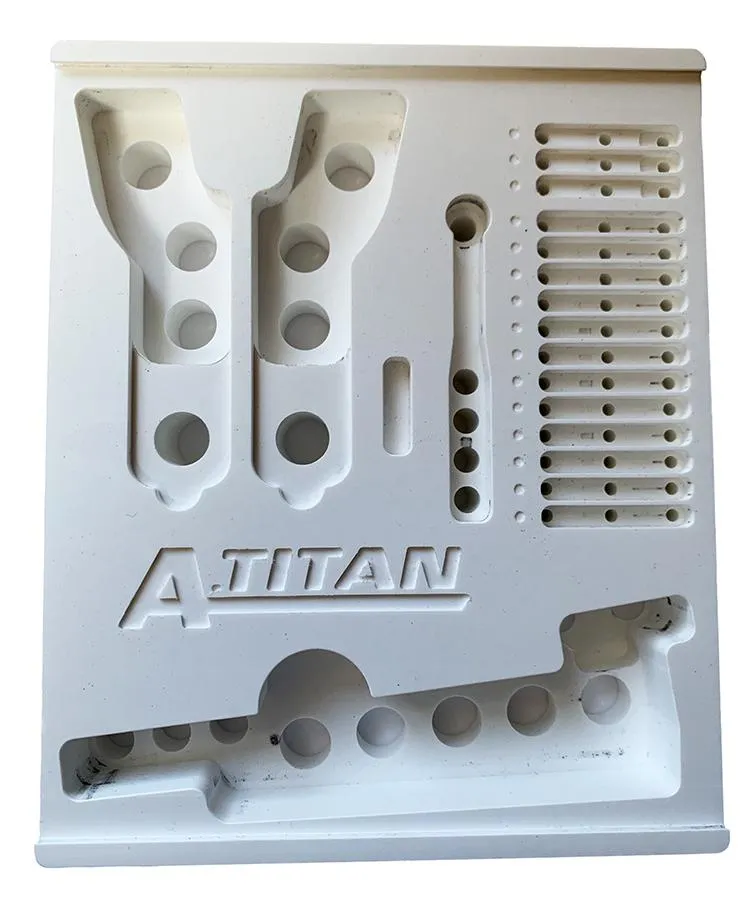

Securely holds each part of the system including screws & drills. Crafted of teflon & aluminum. Fits most steam sterilizers.
Mastering Atraumatic tooth extractions for immediate implant placements
Improve patient outcomes with less trauma and healing time
Increase efficiency in your Practice
Stay competitive in the ever-changing field of dentistry
